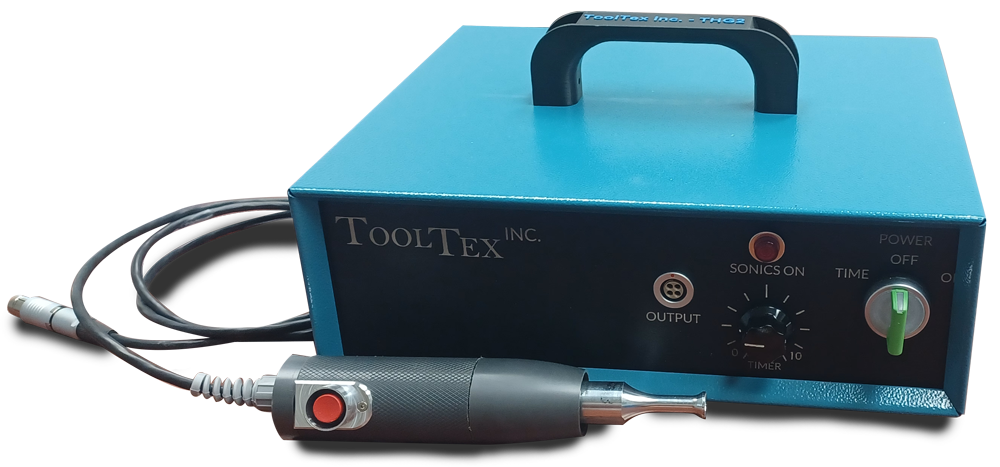

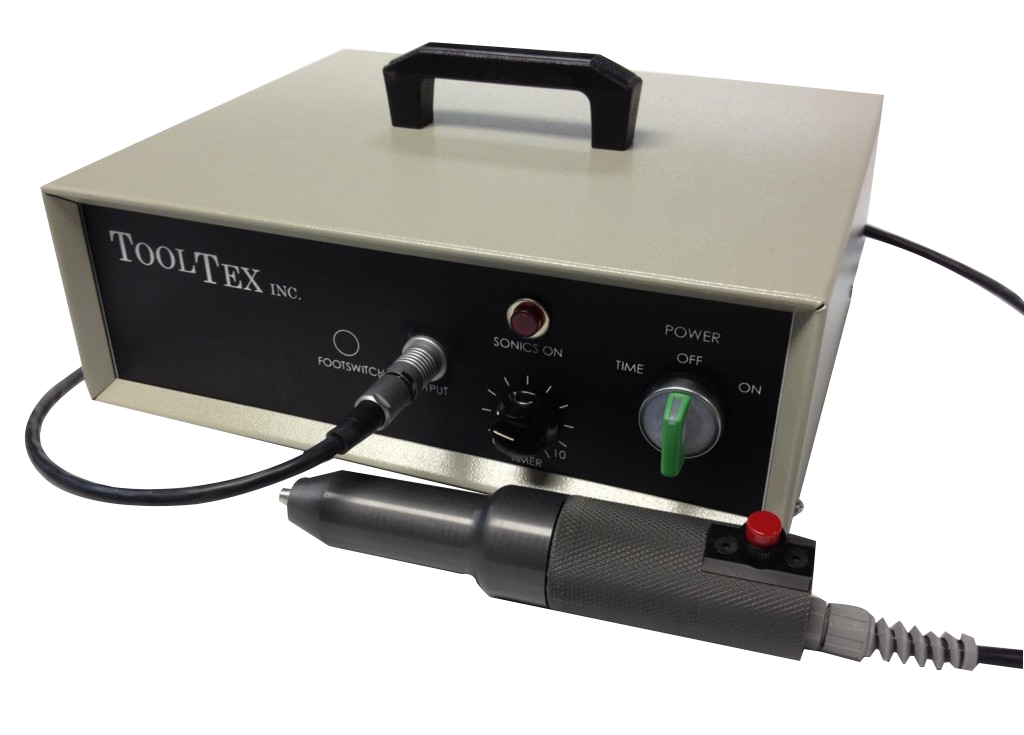

THG2 – HANDHELD ULTRASONIC WELDING SYSTEM

THG2 – 40KHZ ULTRASONIC SYSTEM

This power supply and converter has 5 years of testing in the market place. It is small in size, but powerful in application of spot welding, staking and ultrasonic cutting. It is being used in egg belt welding, manure belt welding, door panel spot welding, ultrasonic cutting and many other applications. A compact system with a compact price… Contact us today!

Output power 150 Watts
Out frequency 40 kHz
Weld time setting 0-999 sec
Amplitude range Varies by horn design
Dimensions 4.25″x12″x10″ (108x305x254 mm)
Power supply weight 13.5lbs (6.12 kg)
Compact hand piece weight 1 lb (0.45 kg)
Compact hand piece size 1.5 D x 7″L
Cable length 6 ft

We provide efficient and cost effective assembly methods for any plastic assembly application.

Let us find the best solution for you, call 614.539.3222 for a quote.
